Smartphone-Direct Pirani Gauge SWU10-U

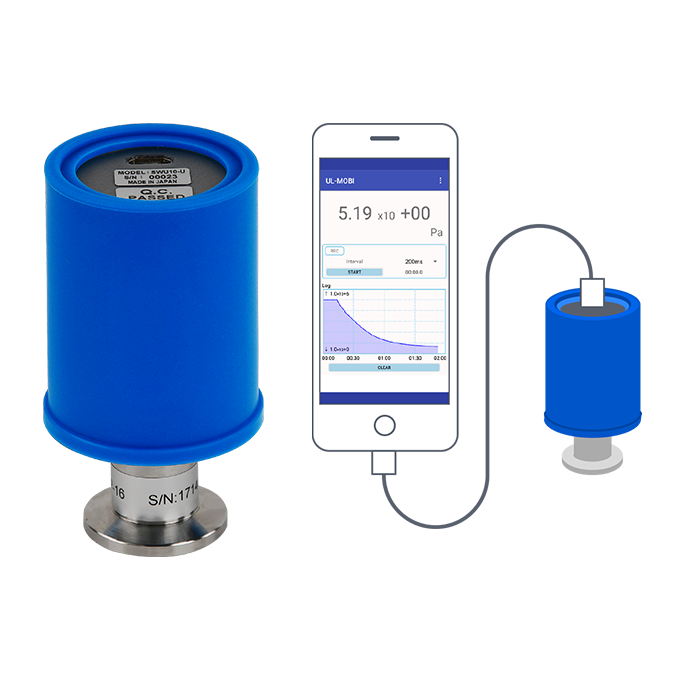

This is a pirani vacuum gauge which can measure degree of vacuum by connecting your smartphone directly with USB cable. No need for dedicated power supply and display.

features

  • Direct Connection with Smartphone: Direct connection with smartphone by using USB cable (patent pending). No need for the other components. ※Connection with PC is also possible.
  • No Need for AC Power Supply: No need for a dedicated power supply.
  • Lightweight and Compact: Size: Φ46×81㎜, weight: 85g (NW16 spec). The smallest and lightest of ULVAC pirani gauge lineup.
  • Excellent Shock Resistance: Excellent shock resistance by ULVAC original structure (patent number 6595945) and body protection rubber.
  • Wide Range Measurement: Measureable pressure range: 5×10-2 to 1×10+5Pa (3.75×10-4 to 760Torr, 5×10-4 to 1,013mbar)
  • Various Fitting Lineup: 7 kinds of fitting lineup including NW16, R1/8, etc.
  • Applicable Standard: Compliant with CE standard

applications

  • Ultimate pressure check in vacuum pump maintenance.
  • Pressure check in vacuum equipment maintenance.

specifications

ModelSWU10-U
Measureable pressure range5.0×10-2～1.0×10+5Pa
Accuracy*1(N2)1.0×10-1～1.0×10+4Pa:±10%
5×10-2～1.0×10-1Pa, 1×10+4～1.0×10+5Pa:±20%
Repeatability1×10-1～1.0×10+4Pa:±2%
Material of filamentPt
Burst pressure*22×10+5Pa (abs)
Operating temperature range10～40℃
Operating humidity range15～85% (not condensing)
Storage temperature-20～65℃ (not condensing)
IP ratingIP30
Fixing positionFree
Power supply voltageDC+5% 350mAMAX
I/O connectorUSB microB
FittingNW16NW25R1/8Φ18 tubeΦ15 tubeICF034Sanitary
Weight85g88g94g93g80g80g145g
OptionUSB2.0 cable (certified product, Type-C – micro-B) 1.5m (model: U2C-CMB15NBK)*3
Inspection certificate, calibration certificate,traceability certificate, JCSS calibration certificate
Applicable StandardCE

*1:Value after atmospheric pressure adjustment and zero point adjustment.

*2:Consider separately burst pressure of flange and clamp, etc.

*3:Select Type-C – micro-B, OTG cable when using a commercial USB cable.

Available smartphone*4

Android 6 or later
Connector: USB Type-C

*4:For available models list, see ULVAC web page.

Application software「UL-MOBI」*5

For smartphoneDownload from Google Play
For PCDownload from ULVAC web page
